Specificaties
Fabrikant artikelnummer: ARCHER C3150

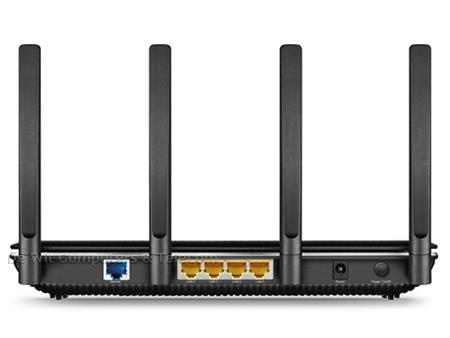

rface :4 10/100/1000Mbps LAN Ports,
1 10/100/1000Mbps WAN Port
1 USB 3.0 Port + 1 USB 2.0 Port
Knop :WPS Button, Reset Button, Wireless On/Off Button,
LED On/Off Button, Power On/Off Button
Externe Voeding :12V/5A
Afmetingen ( B x D x H ) :10.4×7.8×1.5 in. (263.8×197.8×37.3mm)
Antenne :4 Detachable Antennas
DRAADLOZE FUNCTIES
Standaarden voor Draadloze Netwerken :IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequentie :2.4GHz and 5GHz
Overdrachtssnelheid :2167Mbps at 5GHz, 1000Mbps at 2.4GHz
Ontvangstgevoeligheid :5GHz: 11a 6Mbps: -91dBm
11a 54Mbps: -72dBm
11n HT20: -70dBm
11n HT40: -69dBm
11ac HT20: -60dBm
11ac HT40: -61dBm
11ac HT80: -56dBm
2.4GHz: 11g 54Mbps: -73dBm
11n HT20: -72dBm
11n HT40: -69dBm
Draadloze Functies :Enable/Disable Wireless Radio, WMM,
Wireless Statistics
Draadloze Beveiliging :64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions
Kwaliteit van de Dienst (QoS) :
Overdrachtsvermogen :CE: <20dBm(2.4GHz), <23dBm(5GHz)
FCC: <30dBm
Gastnetwerk :2.4GHz guest network x 1, 5GHz guest network x 1
FUNCTIONALITEIT VAN DE SOFTWARE
Kwaliteit van de Dienst (QoS) :WMM, Bandwidth Control
WAN-Type :Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access) /Bigpond
Management :Access Control, Local Management, Remote Management
DHCP :Server, Client, DHCP Client List, Address Reservation
Poort Doorsturen :Virtual Server, Port Triggering, UPnP, DMZ
Dynamische DNS :DynDns, NO-IP
VPN-Doorvoer :PPTP, L2TP, IPSec
VPN :
Toegangsbeheer :Parental Control, Local Management Control,
Host list, Access Schedule, Rule Management
Protocollen :Supports IPv4 and IPv6
USB Deling :Support Samba(Storage)/FTP Server/Media Server/
Printer Server
IPSec VPN :Supports up to 10 IPSec VPN tunnels
VPN Server :PPTP, OpenVPN
OVERIGE
Certificatie :CE, FCC, RoHS
Pakketinhoud :AC 3150 Wireless MU-MIMO Gigabit Router
Archer C3150
4 Detachable Antennas
Power Supply Unit
Ethernet Cable
Quick Installation Guide
Systeemvereisten :Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an Internet Service Provider (for Internet access)
Omgeving :Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
